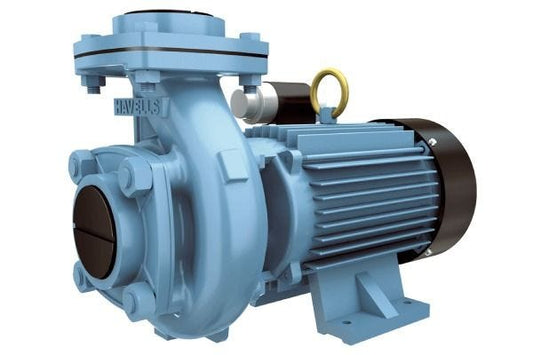

Havells CMN10-29 Centrifugal Monoblock Pump 1 HP | Copper Winding Water Transfer Pump
Havells CMN10-29 Centrifugal Monoblock Pump 1 HP | Copper Winding Water Transfer Pump
-39%

Havells CMN10-29 Centrifugal Monoblock Pump 1 HP | Copper Winding Water Transfer Pump

Rs. 8,229.00
Rs. 13,590.00
39% off

Product Specification

  • Sku: MHPPCM1X00
  • Available: outstock
  • Brand: Havells
  • Rated Voltage: 180 V - 250 V
Ask a Question

Hurry Up! Only 0 left in stock!

Notify me when in stock

Estimate delivery times: 3-6 days (International).

Return within 10 days of purchase. Duties & taxes are non-refundable.

Havells CMN10-29 Centrifugal Monoblock Pump 1 HP | Copper Winding Water Transfer Pump
Havells Store
Havells CMN10-29 Centrifugal Monoblock Pump 1 HP | Copper Winding Water Transfer Pump
Rs. 8,229.00
Rs. 13,590.00
39% off

The Havells CMN10-29 Centrifugal Monoblock Pump is designed for dependable water transfer across homes, farms, gardens, construction sites, sprinklers, overhead tanks, and community water supply applications. With 0.75 kW / 1.0 HP power, copper winding, FG200 motor body, dynamically balanced rotor, and 29 m maximum head, it delivers practical performance for regular domestic, agricultural, and utility water movement.

Key Features

  • 0.75 kW / 1.0 HP centrifugal monoblock pump for water transfer use
  • Maximum head of 29 m for effective lifting performance
  • Maximum discharge of 6900 L/hour for strong water flow
  • Copper winding for reliable motor operation
  • FG200 motor body for longer service life
  • Dynamically balanced rotor for better efficiency and smoother performance
  • Built-in thermal overload protector for motor safety
  • Class F motor insulation for improved durability
  • Low watt loss motor stator for efficient operation
  • Suitable for single phase power supply
  • Useful for irrigation, gardening, sprinklers, construction sites, and community water supply
  • 1 year warranty from Havells

Technical Specifications

Brand Havells
Product Type Centrifugal Monoblock Pump
Model CMN10-29
SKU MHPPCM1X00
Power 0.75 kW / 1.0 HP
Suitable Supply Single Phase
Operating Voltage Range 180 V - 250 V
Maximum Head 29 m
Maximum Working Pressure 2.9 kg/cm²
Maximum Discharge 6900 L/hour
Operating Water Temperature Up to 50°C
Pipe Size 32 mm x 25 mm
Motor Body FG200 for longer life
Motor Speed 2850 RPM
Motor Stator Low watt loss stamping
Winding Type Copper winding
Dynamically Balanced Rotor Yes
Rated Frequency 50 Hz
Direction of Rotation Anti-clockwise when viewed from drive end
Gross Weight 13.9 kg
Packaging Dimensions 395 mm x 175 mm x 270 mm
Warranty 1 Year
Country of Origin India
Net Contents 1 Pumpset, 1 Instruction Manual

Applications

  • Water transfer for apartments and bungalows
  • Farmhouse and gardening applications
  • Irrigation and sprinkler systems
  • Construction site water transfer
  • Fountains and overhead storage tanks
  • Pressure booster systems
  • Hotels, hospitals, and industrial water circulation
  • Domestic and community water supply

Why Buy From MGCkart

  • Genuine Havells product sourced through trusted supply channels
  • Clear technical specifications for better pump selection
  • Suitable for homeowners, plumbers, farms, contractors, and facility teams
  • Bulk order support for project and maintenance requirements
  • Backed by MGC’s electrical trading and project supply experience
• Havells CMN10-29 centrifugal monoblock pump
• 1 HP
• copper winding
• FG200 motor body
• single phase operation
• 29 m head
• 6900 L/hour discharge
• suitable for irrigation
• gardening
• sprinklers
• construction sites and water transfer
