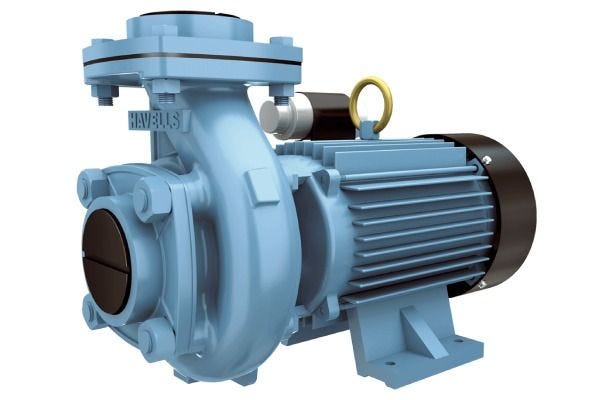

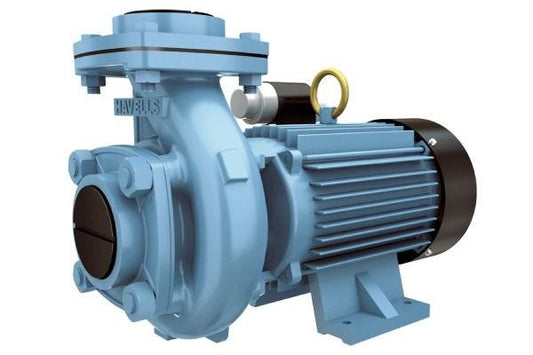

Havells CMQ10D Centrifugal Monoblock Pump 1 HP | Wide Voltage Water Transfer Pump
Havells CMQ10D Centrifugal Monoblock Pump 1 HP | Wide Voltage Water Transfer Pump
-39%

Havells CMQ10D Centrifugal Monoblock Pump 1 HP | Wide Voltage Water Transfer Pump

Rs. 9,698.00
Rs. 15,950.00
39% off

Product Specification

  • Sku: MHPSCY1X00
  • Available: outstock
  • Brand: Havells
  • Rated Voltage: 180 V - 420 V
Ask a Question

Hurry Up! Only 0 left in stock!

Notify me when in stock

Estimate delivery times: 3-6 days (International).

Return within 10 days of purchase. Duties & taxes are non-refundable.

Havells CMQ10D Centrifugal Monoblock Pump 1 HP | Wide Voltage Water Transfer Pump
Havells Store
Havells CMQ10D Centrifugal Monoblock Pump 1 HP | Wide Voltage Water Transfer Pump
Rs. 9,698.00
Rs. 15,950.00
39% off

The Havells CMQ10D Centrifugal Monoblock Pump is designed for dependable water transfer in domestic, commercial, agricultural, and light industrial applications. With 0.75 kW / 1.0 HP power, copper winding, FG200 motor body, dynamically balanced rotor, and a wide operating voltage range, it supports efficient water movement for apartments, bungalows, farmhouses, construction sites, gardening, fountains, overhead tanks, pressure booster systems, hotels, hospitals, and industrial water circulation.

Key Features

  • 0.75 kW / 1.0 HP centrifugal monoblock pump for water transfer applications
  • Maximum discharge of 24000 L/hour for high-volume water movement
  • Maximum head of 14 m for practical water transfer needs
  • Wide operating voltage range of 180 V - 420 V
  • Copper winding for reliable motor performance
  • Built-in thermal overload protector for motor safety
  • Class F motor insulation for better durability
  • Dynamically balanced rotor for smoother and efficient operation
  • FG200 motor body designed for longer service life
  • Low watt loss motor stator for improved efficiency
  • Suitable for irrigation, gardening, sprinklers, construction sites, and community water supply
  • Single phase supply compatibility for residential and commercial use
  • 1 year warranty from Havells

Technical Specifications

Brand Havells
Product Type Centrifugal Monoblock Pump
Model CMQ10D
SKU MHPSCY1X00
Power 0.75 kW / 1.0 HP
Suitable Supply Single Phase
Operating Voltage Range 180 V - 420 V
Maximum Head 14 m
Maximum Working Pressure 1.4 kg/cm²
Maximum Discharge 24000 L/hour
Operating Water Temperature Up to 50°C
Pipe Size 50 mm x 50 mm
Motor Body FG200 for longer life
Motor Speed 2850 RPM
Motor Stator Low watt loss stamping
Winding Type Copper winding
Dynamically Balanced Rotor Yes
Rated Frequency 50 Hz
Direction of Rotation Anti-clockwise when viewed from drive end
Gross Weight 23.08 kg
Packaging Dimensions 460 mm x 215 mm x 295 mm
Warranty 1 Year
Country of Origin India
Net Contents 1 Pumpset, 1 Instruction Manual

Applications

  • Water transfer for apartments and bungalows
  • Farmhouses and gardening use
  • Irrigation and sprinkler applications
  • Construction site water supply
  • Fountains and overhead storage tanks
  • Pressure booster systems
  • Hotels, hospitals, and industrial water circulation
  • Domestic and community water supply

Why Buy From MGCkart

  • Genuine Havells product sourced through trusted supply channels
  • Clear technical specifications for faster pump comparison
  • Suitable for homeowners, contractors, plumbers, farms, and facility teams
  • Bulk order support for project and maintenance requirements
  • Backed by MGC’s electrical trading and project supply experience
• Havells CMQ10D centrifugal monoblock pump
• 1 HP
• copper winding
• FG200 motor body
• single phase
• 24000 L/hour discharge
• suitable for water transfer
• irrigation
• gardening and construction use
