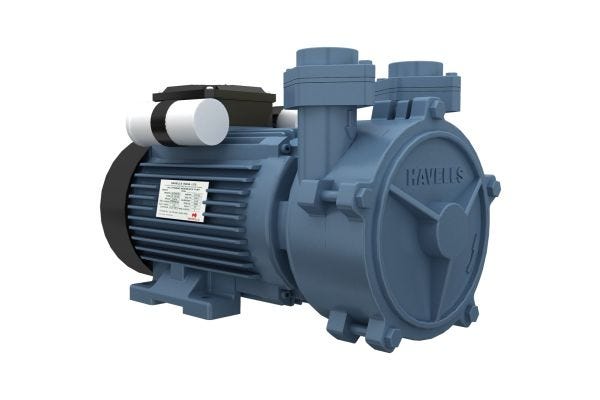

The Havells D1 Self Priming Mini Monoblock Pump is built for homes, apartments, bungalows, farm houses, overhead tanks, gardening, fountains, hotels, hospitals, and light industrial water circulation where steady suction and durable motor performance are required. This 1 HP / 0.75 kW pump comes with copper winding, Class F motor insulation, in-built thermal overload protection, high suction up to 8 m, forged brass impeller, stainless steel SS-410 shaft, graded cast iron pump casing, and a high quality cast iron motor body for dependable long-term water transfer use.
| Brand | Havells |
| Product Type | Self Priming Mini Monoblock Pump |
| Model | D1 |
| Power | 1 HP |
| Rated Power | 0.75 kW |
| Supply Type | Single Phase |
| Voltage Operating Range | 180 V to 240 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 1440 RPM |
| Winding Type | Copper Winding |
| Motor Insulation Class | Class F |
| Motor Body | High Quality Cast Iron |
| Motor Stator | Low Watt Loss Stamping |
| Thermal Overload Protector | In-built |
| Pump Casing | Graded Cast Iron |
| Impeller | Forged Brass |
| Shaft | Stainless Steel SS-410 |
| High Suction | Up to 8 m |
| Pipe Size | 25 mm x 25 mm |
| Operating Water Temperature | Up to 50°C |
| Power Supply Cable | Yes |
| Mechanical Seal | High Quality Mechanical Seal |
| Direction of Rotation | Clockwise when viewed from fan cover side |
| Depth | 359 mm |
| Height | 222 mm |
| Gross Weight | 28.66 kg |
| Packaging Dimensions | 457.2 mm x 254 mm x 304.8 mm |
| Warranty | 2 Year |
| SKU | MHPBDS1X00 |
| Country of Origin | India |
| Net Contents | 1 Pump Set, 1 Instruction Manual, 1 Warranty Card, 1 Suction Strainer |
