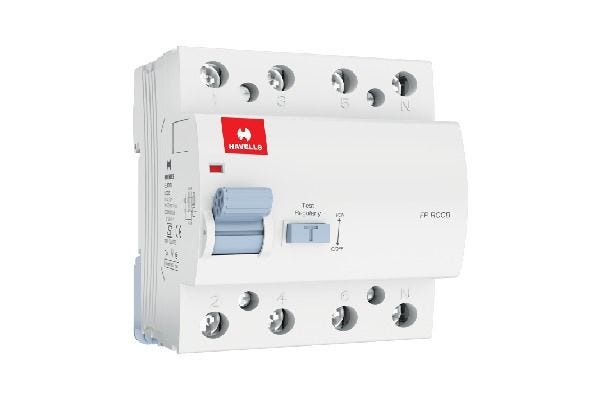

Havells FP RCCB EURO2 D7 30mA 25A

The Havells FP RCCB EURO2 D7 30mA 25A is designed for leakage current protection in commercial and industrial electrical distribution systems. With four pole execution, 25A current rating, 30mA sensitivity, IP2X finger-safe terminal design, bi-connect terminals, and IS 12640 Part 1 / IEC 61008-1 / EN 61008-1 compliance, it supports residual current protection for three phase distribution board installations where electrical safety, earth leakage protection, and reliable load handling are important.

Key Features

  • EURO2 D7 RCCB designed for leakage current protection.
  • 25A rating suitable for selected three phase electrical distribution circuits.
  • 30mA sensitivity supports human safety focused earth leakage protection.
  • Four Pole execution suitable for three phase and neutral protection in FP DB systems.
  • Test button provided for regular inspection and functional testing.
  • IP2X finger-proof terminal design improves installation safety.
  • Bi-connect terminals allow simultaneous termination of busbar and wires at incoming side.
  • Terminals suitable for copper and aluminium cables up to 35 mm² cross-section area.
  • Designed to offer immunity against nuisance tripping.
  • Designed as per IS 12640 Part 1, IEC 61008-1, and EN 61008-1 standards.

Technical Specifications

Brand Havells
Product Type RCCB
Series EURO2 D7
SKU DHRACMFF030025
Execution Pole Four Pole (FP)
Current Rating 25A
Rating Range 25A to 63A
Sensitivity 30mA
Packaging Dimension 98 mm x 75 mm x 80 mm
Terminal Capacity Up to 35 mm² cable cross-section
Application Industrial and commercial purposes
Specification IS 12640 Part 1 / IEC 61008-1 / EN 61008-1
Country of Origin India
Manufactured By Havells India Ltd.
Net Contents 1 Main Unit

Applications

  • Three phase distribution board protection
  • Commercial electrical DB systems
  • Industrial control and distribution panels
  • Earth leakage and residual current protection
  • Electrical safety protection for FP circuit installations
