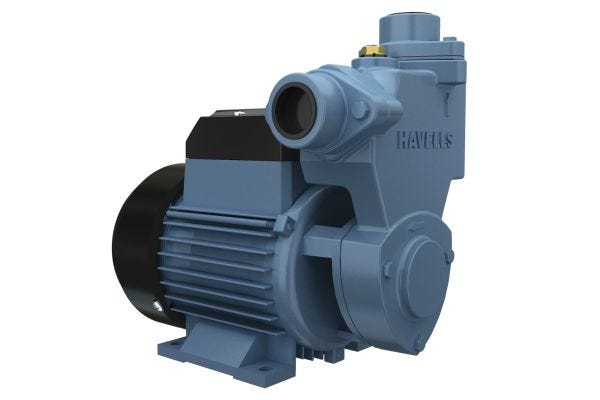

The Havells S1 Self Priming Mini Monoblock Pump is designed for reliable clear cold water transfer in homes, apartments, bungalows, farm houses, gardens, fountains, overhead storage tanks, hotels, hospitals, and light industrial water circulation. This 1 HP / 0.75 kW pump offers high suction up to 8 m, copper winding, Class F motor insulation, in-built thermal overload protection, forged brass impeller, graded cast iron pump casing, and a high-quality die casted aluminium motor body for dependable daily pumping performance.
| Brand | Havells |
| Product Type | Self Priming Mini Monoblock Pump |
| Model | S1 |
| Power | 1 HP |
| Rated Power | 0.75 kW |
| Supply Type | Single Phase |
| Voltage Operating Range | 180 V to 240 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 2850 RPM |
| Winding Type | Copper Winding |
| Motor Insulation Class | Class F |
| Motor Body | High-quality Die Casted Aluminium |
| Motor Stator | Low Watt Loss Stamping |
| Thermal Overload Protector | In-built |
| Pump Casing | Graded Cast Iron |
| Impeller | Forged Brass |
| Shaft | Stainless Steel SS-410 |
| High Suction | Up to 8 m |
| Pipe Size | 25 mm x 25 mm |
| Operating Water Temperature | Up to 50°C |
| Power Supply Cable | Yes |
| Mechanical Seal | High Quality Mechanical Seal |
| Coupling Type | Double D Type |
| Direction of Rotation | Clockwise when viewed from fan cover side |
| Gross Weight | 17.17 kg |
| Net Weight | 16.7 kg |
| Packaging Dimensions | 381 mm x 279.4 mm x 355.6 mm |
| Warranty | 2 Year |
| SKU | MHPASS1X00 |
| Country of Origin | India |
| Net Contents | 1 Pump Set, 1 Instruction Manual, 1 Warranty Card, 1 Suction Strainer |
