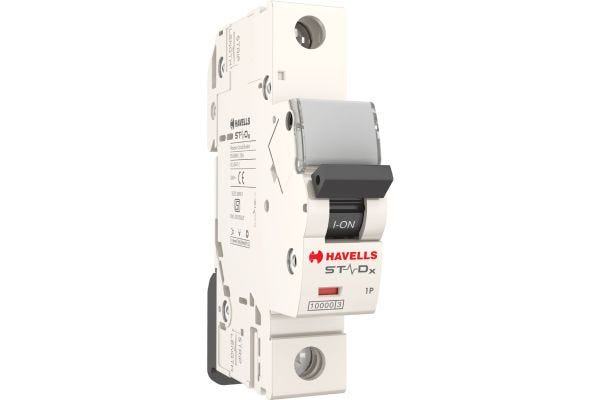

Havells 6A SP C Curve MCB

The Havells SP C Curve MCB 6A is designed for overload and short circuit protection in residential, commercial, and industrial electrical distribution systems. With single pole execution, C Curve protection, DIN rail mounting, flame-retardant thermoplastic construction, and positive contact indication, it is suitable for motor, inductive load, and low voltage circuit protection applications.

Key Features

  • 6A single pole MCB suitable for phase circuit protection.
  • C Curve tripping characteristic suitable for motor and inductive load applications.
  • Provides protection against overload and short circuit faults.
  • Clip-on DIN rail mounting for easy panel installation.
  • Positive contact indication through red ON and green OFF flag indication.
  • Moulded flame-retardant thermoplastic case and cover for improved electrical safety.
  • Supports auxiliary contact and shunt trip compatibility.
  • Designed as per IS/IEC 60898-1 and IS/IEC 60947-2 reference standards.

Technical Specifications

Brand Havells
Product Type MCB
SKU DHMZCSPF006
Current Rating 6A
Execution Pole Single Pole
Curve Type C Curve
Rated Frequency 50 Hz
Rated Voltage 240V AC / 415V AC
Rated Insulation Voltage 690V
Rated Impulse Voltage 4kV
Dielectric Strength 2.5kV
Terminal Capacity 35 mm² Maximum
Protection Class IP20
Operating Temperature -5°C to +55°C
Mounting Clip-on DIN Rail 35 mm x 7.5 mm
Installation Position Vertical / Horizontal
Tightening Torque 2 Nm
Dimensions 87.5 mm x 62 mm x 17.7 mm
Case and Cover Moulded Flame-Retardant Thermoplastic Material
Positive Contact Indication Yes, Red ON and Green OFF Flag Indication
Country of Origin India
Manufactured By Havells India Ltd.
Net Contents 1 Main Unit

Applications

  • Residential distribution boards
  • Commercial electrical panels
  • Industrial switchgear panels
  • Motor and inductive load protection
  • Single pole overload and short circuit protection
