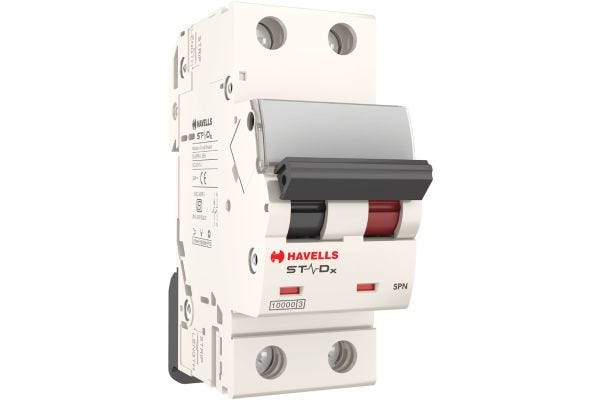

The Havells SPN C Curve MCB 32A is designed for overload and short circuit protection in residential, commercial, and industrial electrical distribution systems. With single pole with neutral execution, C Curve protection, DIN rail mounting, flame-retardant thermoplastic construction, and positive contact indication, it is suitable for motor, inductive load, and low voltage circuit protection applications.
| Brand | Havells |
| Product Type | MCB |
| SKU | DHMZCSNF032 |
| Current Rating | 32A |
| Execution Pole | Single Pole with Neutral |
| Curve Type | C Curve |
| Rated Frequency | 50 Hz |
| Rated Voltage | 240V AC / 415V AC |
| Rated Insulation Voltage | 690V |
| Rated Impulse Voltage | 4kV |
| Dielectric Strength | 2.5kV |
| Terminal Capacity | 35 mm² Maximum |
| Protection Class | IP20 |
| Operating Temperature | -5°C to +55°C |
| Mounting | Clip-on DIN Rail 35 mm x 7.5 mm |
| Installation Position | Vertical / Horizontal |
| Tightening Torque | 2 Nm |
| Dimensions | 87.5 mm x 62 mm x 17.7 mm |
| Case and Cover | Moulded Flame-Retardant Thermoplastic Material |
| Positive Contact Indication | Yes, Red ON and Green OFF Flag Indication |
| Country of Origin | India |
| Manufactured By | Havells India Ltd. |
| Net Contents | 1 Main Unit |
