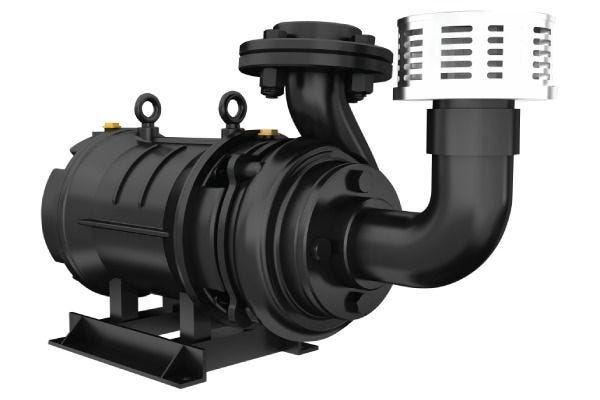

Havells WR3H Openwell Submersible Pump 3 HP 2.2 kW MHPHDH3X00 | Three Phase Copper Winding with 610 L/min Discharge
Havells WR3H Openwell Submersible Pump 3 HP 2.2 kW MHPHDH3X00 | Three Phase Copper Winding with 610 L/min Discharge
-39%

Havells WR3H Openwell Submersible Pump 3 HP 2.2 kW MHPHDH3X00 | Three Phase Copper Winding with 610 L/min Discharge

Rs. 22,950.00
Rs. 37,620.00
38% off

Product Specification

  • Sku: MHPHDH3X00
  • Available: outstock
  • Brand: Havells
  • Rated Voltage: 300 V to 440 V
Ask a Question

Hurry Up! Only 0 left in stock!

Notify me when in stock

Estimate delivery times: 3-6 days (International).

Return within 10 days of purchase. Duties & taxes are non-refundable.

Havells WR3H Openwell Submersible Pump 3 HP 2.2 kW MHPHDH3X00 | Three Phase Copper Winding with 610 L/min Discharge
Havells Store
Havells WR3H Openwell Submersible Pump 3 HP 2.2 kW MHPHDH3X00 | Three Phase Copper Winding with 610 L/min Discharge
Rs. 22,950.00
Rs. 37,620.00
38% off

The Havells WR3H Openwell Submersible Pump is built for lifting water from ponds, underground sumps, and open wells where reliable three phase performance, strong discharge, and durable construction are required. With 3 HP / 2.2 kW power, copper winding, 27 m maximum head, 610 L/min maximum discharge, and a special grade cast iron motor body, this pump is suitable for apartments, farm houses, hotels, agriculture, farms, and openwell water supply applications.

Key Features

  • 3 HP / 2.2 kW openwell submersible pump for water lifting applications
  • Three phase supply support for stable heavy-duty operation
  • Maximum discharge of 610 L/min for efficient water transfer
  • Maximum head of 27 m for openwell and sump water lifting needs
  • 65 mm x 50 mm pipe size for practical water flow handling
  • Copper winding for dependable motor performance
  • Special grade cast iron motor body for rugged use
  • CED coated cast iron parts for corrosion-resistant performance
  • Dynamically balanced rotor for smoother and trouble-free operation
  • Low watt loss motor stator for better efficiency
  • Operating voltage range of 300 V to 440 V
  • 1 year warranty support

Technical Specifications

Brand Havells
Product Type Openwell Submersible Pump
Model WR3H
SKU MHPHDH3X00
Power 3 HP
Rated Power 2.2 kW
Supply Type Three Phase
Operating Voltage Range 300 V to 440 V
Frequency 50 Hz
Rated Frequency 50 Hz
Motor Speed 2850 RPM
Winding Type Copper Winding
Motor Body Special Grade Cast Iron
Motor Stator Low Watt Loss Stamping
Maximum Head 27 m
Maximum Discharge 610 L/min
Maximum Working Pressure 2.7 kg/cm²
Pipe Size 65 mm x 50 mm
Operating Water Temperature Up to 35°C
Direction of Rotation Anti-clockwise when viewed from drive end
Rotor Dynamically Balanced Rotor
Gross Weight 52.23 kg
Packaging Dimensions 444.5 mm x 266.7 mm x 419.1 mm
Warranty 1 Year
Country of Origin India
Net Contents 1 Pump Set with Power Cord, 1 Control Panel, 1 Instruction Manual, 1 Joint Kit, 1 Suction Strainer

Applications

  • Openwell water lifting
  • Pond water lifting
  • Underground sump water transfer
  • Apartments and farm houses
  • Hotels and institutional water supply
  • Agriculture and farms

Why Buy From MGCkart

  • Genuine Havells pump sourced through trusted supply channels
  • Clear technical specifications for better pump selection
  • Suitable for residential, agricultural, and commercial water lifting needs
  • Bulk order and contractor procurement support available
  • Backed by MGC’s electrical trading and project supply experience
• Havells WR3H openwell submersible pump
• 3 HP
• 2.2 kW
• three phase
• copper winding
• special grade cast iron motor body
• 27 m maximum head
• 610 L/min discharge
• 65 mm x 50 mm pipe size
