Havells WR5H Openwell Submersible Pump 5 HP 3.7 kW MHPHDH5X00 | Three Phase Copper Winding with 850 L/min Discharge
Havells WR5H Openwell Submersible Pump 5 HP 3.7 kW MHPHDH5X00 | Three Phase Copper Winding with 850 L/min Discharge
-35%

Havells WR5H Openwell Submersible Pump 5 HP 3.7 kW MHPHDH5X00 | Three Phase Copper Winding with 850 L/min Discharge

Rs. 24,932.00
Rs. 38,160.00
34% off

Product Specification

  • Sku: MHPHDH5X00
  • Available: outstock
  • Brand: Havells
  • Rated Voltage: 300 V to 440 V
Ask a Question

Hurry Up! Only 0 left in stock!

Notify me when in stock

Estimate delivery times: 3-6 days (International).

Return within 10 days of purchase. Duties & taxes are non-refundable.

Havells WR5H Openwell Submersible Pump 5 HP 3.7 kW MHPHDH5X00 | Three Phase Copper Winding with 850 L/min Discharge
Havells Store
Havells WR5H Openwell Submersible Pump 5 HP 3.7 kW MHPHDH5X00 | Three Phase Copper Winding with 850 L/min Discharge
Rs. 24,932.00
Rs. 38,160.00
34% off

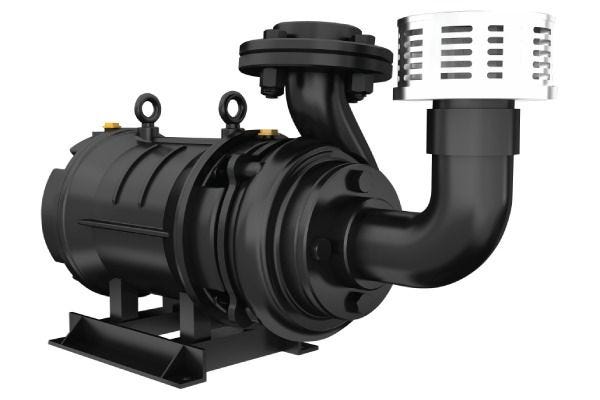

The Havells WR5H Openwell Submersible Pump is designed for lifting water from ponds, underground sumps, and open wells where higher discharge, stable three phase operation, and rugged motor construction are required. With 5 HP / 3.7 kW power, copper winding, 33 m maximum head, 850 L/min maximum discharge, and special grade cast iron motor body, this pump is suitable for apartments, farm houses, hotels, agriculture, and farm water supply applications.

Key Features

  • 5 HP / 3.7 kW openwell submersible pump for high-volume water lifting
  • Three phase supply support for heavy-duty and stable operation
  • Maximum discharge of 850 L/min for faster water transfer
  • Maximum head of 33 m for openwell, sump, and pond lifting needs
  • 65 mm x 50 mm pipe size for practical flow handling
  • Copper winding for dependable motor performance
  • Special grade cast iron motor body for rugged usage
  • CED coated cast iron parts for corrosion-resistant performance
  • Dynamically balanced rotor for smoother and trouble-free operation
  • Low watt loss motor stator for better efficiency
  • Operating voltage range of 300 V to 440 V
  • 1 year warranty support

Technical Specifications

Brand Havells
Product Type Openwell Submersible Pump
Model WR5H
SKU MHPHDH5X00
Power 5 HP
Rated Power 3.7 kW
Supply Type Three Phase
Operating Voltage Range 300 V to 440 V
Frequency 50 Hz
Rated Frequency 50 Hz
Motor Speed 2850 RPM
Winding Type Copper Winding
Motor Body Special Grade Cast Iron
Motor Stator Low Watt Loss Stamping
Maximum Head 33 m
Maximum Discharge 850 L/min
Maximum Working Pressure 3.3 kg/cm²
Pipe Size 65 mm x 50 mm
Operating Water Temperature Up to 35°C
Direction of Rotation Anti-clockwise when viewed from drive end
Rotor Dynamically Balanced Rotor
Gross Weight 60.1 kg
Packaging Dimensions 533.4 mm x 285.75 mm x 419.1 mm
Warranty 1 Year
Country of Origin India
Net Contents 1 Pump Set with Power Cord, 1 Control Panel, 1 Instruction Manual, 1 Joint Kit, 1 Suction Strainer

Applications

  • Openwell water lifting
  • Pond water lifting
  • Underground sump water transfer
  • Apartments and farm houses
  • Hotels and institutional water supply
  • Agriculture and farms

Why Buy From MGCkart

  • Genuine Havells pump sourced through trusted supply channels
  • Clear technical specifications for better pump selection
  • Suitable for residential, agricultural, and commercial water lifting needs
  • Bulk order and contractor procurement support available
  • Backed by MGC’s electrical trading and project supply experience
• Havells WR5H openwell submersible pump
• 5 HP
• 3.7 kW
• three phase
• copper winding
• special grade cast iron motor body
• 33 m maximum head
• 850 L/min discharge
• 65 mm x 50 mm pipe size
