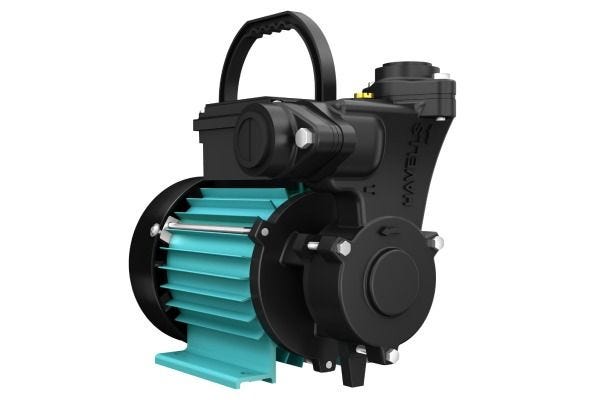

The Havells ZINNIA1 Plus Self Priming Mini Monoblock Pump is designed for domestic and light commercial clear water transfer where reliable suction, steady flow, and motor protection are important. With 1 HP / 0.75 kW power, copper winding, 34 m maximum head, 2700 L/hour maximum discharge, Class F insulation, built-in thermal overload protection, and CED coated cast iron hydraulic parts, this pump is suitable for apartments, bungalows, farm houses, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, and light industrial water circulation.
| Brand | Havells |
| Product Type | Self Priming Mini Monoblock Pump |
| Model | ZINNIA1 Plus |
| SKU | MHPAEB1X00 |
| Power | 1 HP |
| Rated Power | 0.75 kW |
| Supply Type | Single Phase |
| Operating Voltage Range | 180 V to 260 V |
| Frequency | 50 Hz |
| Rated Frequency | 50 Hz |
| Maximum Head | 34 m |
| Maximum Working Pressure | 3.4 kg/cm² |
| Maximum Discharge | 2700 L/hour |
| Pipe Size | 25 mm x 25 mm |
| Operating Water Temperature | Up to 50°C |
| Motor Speed | 2850 RPM |
| Winding Type | Copper Winding |
| Motor Body | High Quality Extruded Aluminium |
| Motor Stator | Low Watt Loss Stamping |
| Rotor | Dynamically Balanced Rotor |
| Protection | Built-in Thermal Overload Protector |
| Motor Insulation | Class F |
| Hydraulic Part | CED Coated Cast Iron |
| Direction of Rotation | Clockwise when viewed from fan cover side |
| Gross Weight | 8.6 kg |
| Packaging Dimensions | 304.8 mm x 228.6 mm x 279.4 mm |
| Country of Origin | India |
| Warranty | 1 Year |
| Net Contents | 1 Pump Set, 1 Instruction Manual, 1 Warranty Card, 1 Suction Strainer |
